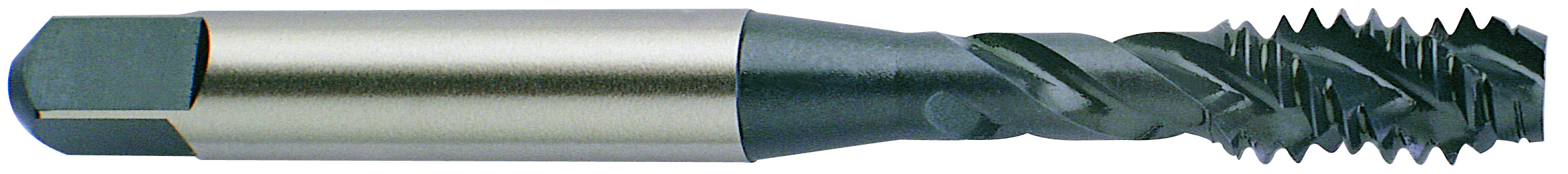

Picture of YG-1 G4224 M3.5-0.60mm Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Uncoated

YG-1 G4224 M3.5-0.60mm Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Uncoated

Part Number: YG-G4224
Looking for alternatives…
Find a drill for this tap M3.5 × 0.60MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1162208
Vendor: Sussex Tool and Supply
$9.09

Description

YG-1 G4224 M3.5x0.60MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Uncoated D4 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 0.60MM
Thread Size M3.5
Tap Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Square 0.1100
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Standards & Identification
Dimension Standard ANSI/ANSI
