  • YG-1 F6082 No.2-56.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Hardslick

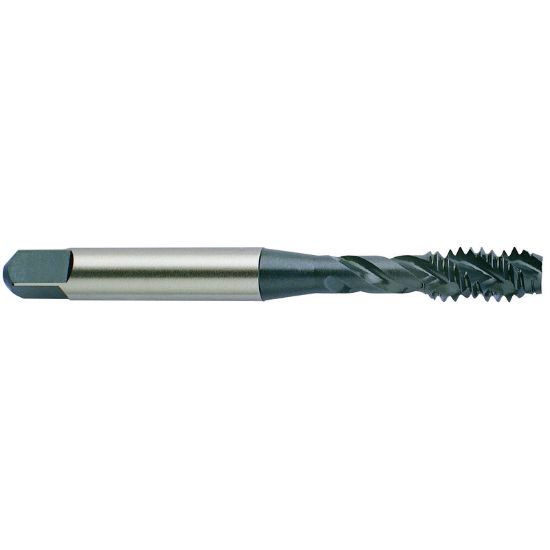

Picture of YG-1 F6082 No.2-56.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Hardslick

YG-1 F6082 No.2-56.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-F6082
Delivery date: 3-5 days
$13.33

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Coating Hardslick
Performance Rating General Performance
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.1100
Dimension Standard ANSI/ANSI
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Cut Rating <25HRC Steel, Stainless Steel
Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Thread Size No.2
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 2
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
