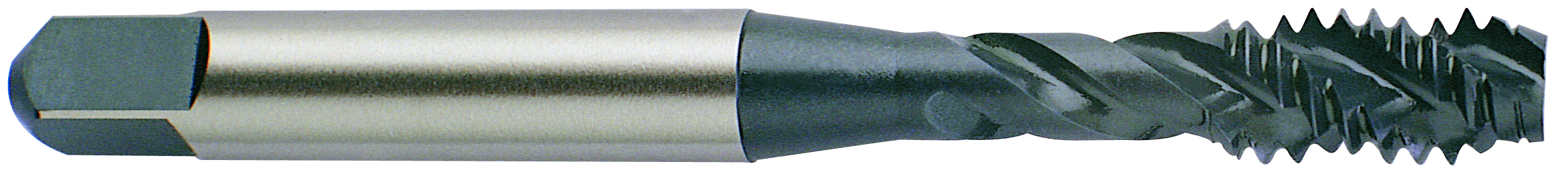

Picture of YG-1 F4323 No.10-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Steam Oxide

YG-1 F4323 No.10-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Steam Oxide

Part Number: YG-F4323

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1161917
Vendor: Sussex Tool and Supply
$5.83
YG-1 F4323 No.10x24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating <25HRC Steel, Stainless Steel
Coating Steam Oxide
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Thread Size No.10
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1520
Tap Chamfer 1.5P-2.0P
