  • YG-1 ESD02020206 DIA 2MM SH 0.1575 LOC 0.0472 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0079 0.20MM CBN

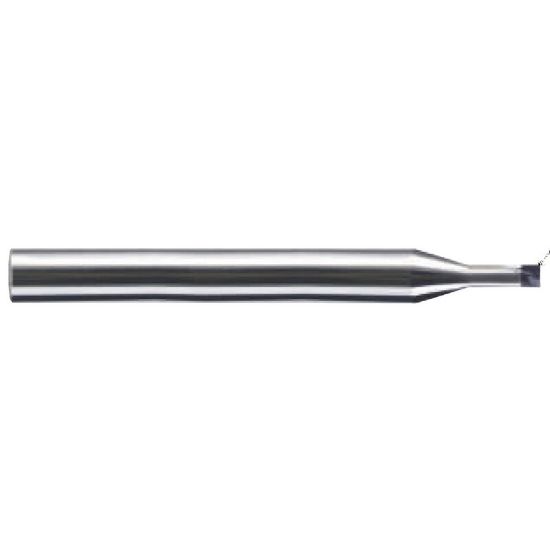

Picture of YG-1 ESD02020206 DIA 2MM SH 0.1575 LOC 0.0472 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0079 0.20MM CBN

YG-1 ESD02020206 DIA 2MM SH 0.1575 LOC 0.0472 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0079 0.20MM CBN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ESD02020206
Delivery date: 3-5 days
$221.35

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Slot Milling, Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Cutter Dia 0.0787 2.00MM
Neck Length 0.2362 6.00MM
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Tool Material CBN
Cut Rating >50HRC Steel
Cutter Style CBN Bull Nose
Helix Angle 30°
Length Of Cut 0.0472 1.20MM
Inch/Metric Metric
Single/Double End Single End
Corner Radius 0.0079 0.20MM
Machine Side Connection Size 0.1575 4.00MM
Length Type Standard / With Neck
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat CBN
Coolant Thru No
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
