  • YG-1 ESD02020100 DIA 2MM SH 0.1575 LOC 0.0472 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0039 0.10MM CBN

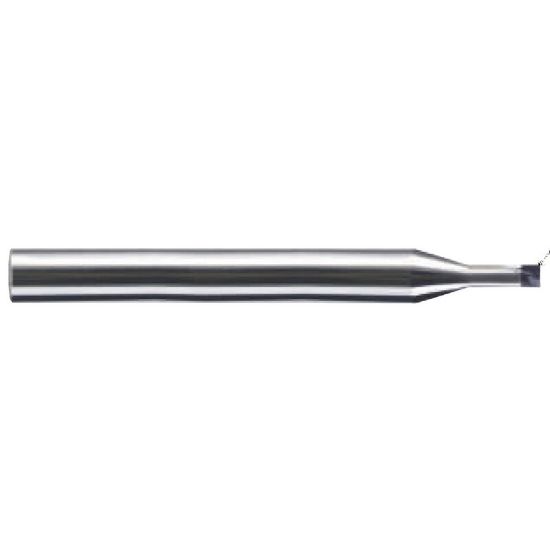

Picture of YG-1 ESD02020100 DIA 2MM SH 0.1575 LOC 0.0472 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0039 0.10MM CBN

YG-1 ESD02020100 DIA 2MM SH 0.1575 LOC 0.0472 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0039 0.10MM CBN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ESD02020100
Delivery date: 3-5 days
$221.35

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Application Side Milling, Slot Milling, Face Milling, Profile Milling, Copy Milling
Package Size 1
Dimensional Specifications
Tool Material CBN
Neck Length 0.3937 10.00MM
Length Type Standard / With Neck
Corner Radius 0.0039 0.10MM
Cut Rating >50HRC Steel
Overall Len 1.9685 50.00MM
Cutter Style CBN Bull Nose
Helix Angle 30°
Machine Side Connection Size 0.1575 4.00MM
Flutes/Inserts 2
Length Of Cut 0.0472 1.20MM
Inch/Metric Metric
Cutter Dia 0.0787 2.00MM
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat CBN
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
