  • YG-1 ESD02015208 DIA 1.50MM SH 0.1575 LOC 0.0394 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0079 0.20MM CBN

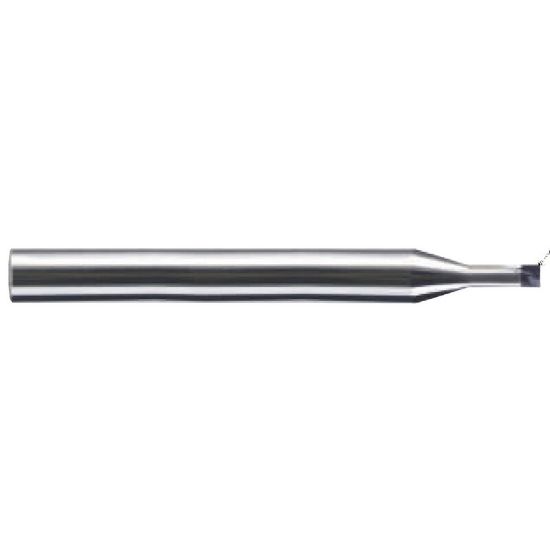

Picture of YG-1 ESD02015208 DIA 1.50MM SH 0.1575 LOC 0.0394 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0079 0.20MM CBN

YG-1 ESD02015208 DIA 1.50MM SH 0.1575 LOC 0.0394 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0079 0.20MM CBN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ESD02015208
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating >50HRC Steel
Length Of Cut 0.0394 1.00MM
Cutter Style CBN Bull Nose
Helix Angle 30°
Cutter Dia 0.0590 1.50MM
Inch/Metric Metric
Single/Double End Single End
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Flutes/Inserts 2
Tool Material CBN
Corner Radius 0.0079 0.20MM
Machine Side Connection Size 0.1575 4.00MM
Length Type Standard / With Neck
Neck Length 0.3150 8.00MM
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat CBN
Coolant Thru No
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
