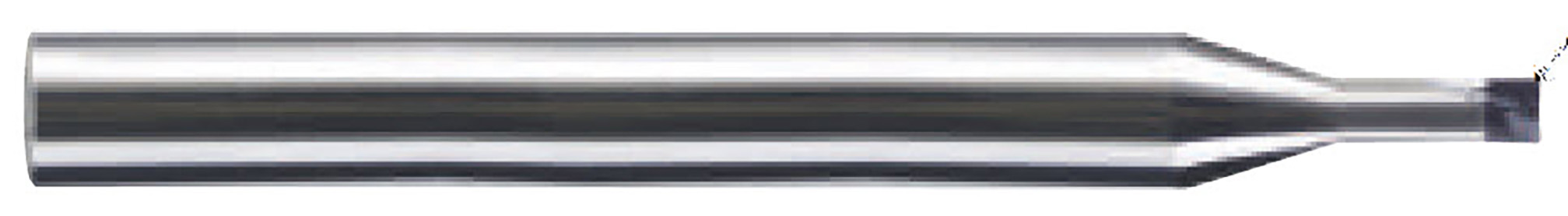

Picture of YG-1 ESD02015108 Dia 1.50mm SH 0.1575 LOC 0.0394 OAL1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius0.0039 0.10mm CBN

YG-1 ESD02015108 Dia 1.50mm SH 0.1575 LOC 0.0394 OAL1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius0.0039 0.10mm CBN

Part Number: YG-ESD02015108

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1212009
Vendor: Sussex Tool and Supply
$243.60
YG-1 Standard Helix End Mill CBN Uncoated Corner Radius 0.0039 0.10MM Standard Flute Flutes 2 Single End CBN CBN
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material CBN
Cutting Edge Mat CBN
Machine Side Connection Type Cylindrical
Cut Rating >50HRC Steel
Mach Side Connection Size 0.1575 4.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0591 1.50MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.0394 1.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style CBN Bull Nose
Single/Double End Single End
Corner Radius 0.0039 0.10MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 0.3150 8.00MM
