  • YG-1 ESD02010055 DIA 1MM SH 0.1575 LOC 0.0276 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

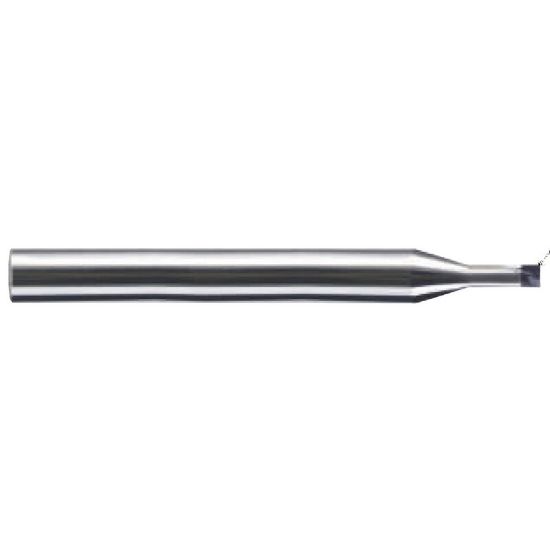

Picture of YG-1 ESD02010055 DIA 1MM SH 0.1575 LOC 0.0276 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

YG-1 ESD02010055 DIA 1MM SH 0.1575 LOC 0.0276 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ESD02010055
Delivery date: 3-5 days
$211.17

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Dimensional Specifications
Tool Material CBN
Length Of Cut 0.0276 0.70MM
Neck Length 0.1969 5.00MM
Length Type Standard / With Neck
Cut Rating >50HRC Steel
Cutter Dia 0.0393 1.00MM
Overall Len 1.9685 50.00MM
Cutter Style CBN Bull Nose
Helix Angle 30°
Corner Radius 0.0020 0.05MM
Flutes/Inserts 2
Inch/Metric Metric
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side Connection Size 0.1575 4.00MM
Cutting & Machining Properties
Cutting Edge Mat CBN
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
