  • YG-1 ESD02010053 DIA 1MM SH 0.1575 LOC 0.0276 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

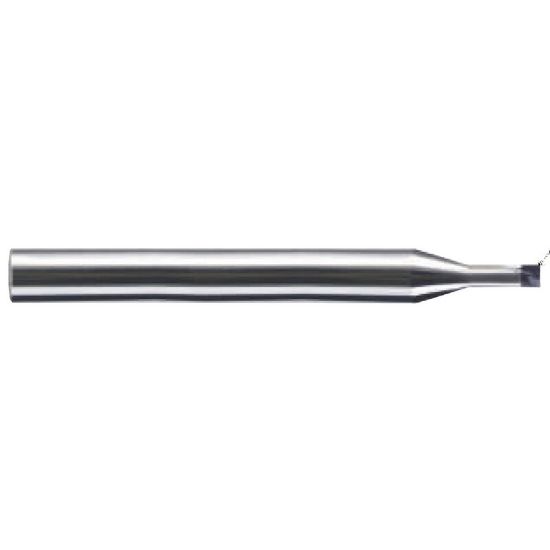

Picture of YG-1 ESD02010053 DIA 1MM SH 0.1575 LOC 0.0276 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

YG-1 ESD02010053 DIA 1MM SH 0.1575 LOC 0.0276 OAL 1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ESD02010053
Delivery date: 3-5 days
$211.17

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling, Slot Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating >50HRC Steel
Cutter Dia 0.0393 1.00MM
Neck Length 0.1181 3.00MM
Overall Len 1.9685 50.00MM
Cutter Style CBN Bull Nose
Helix Angle 30°
Tool Material CBN
Length Of Cut 0.0276 0.70MM
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1575 4.00MM
Corner Radius 0.0020 0.05MM
Flutes/Inserts 2
Inch/Metric Metric
Length Type Standard / With Neck
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat CBN
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
