  • YG-1 ESD02005053 DIA 0.50MM SH 0.1575 LOC 0.0118 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

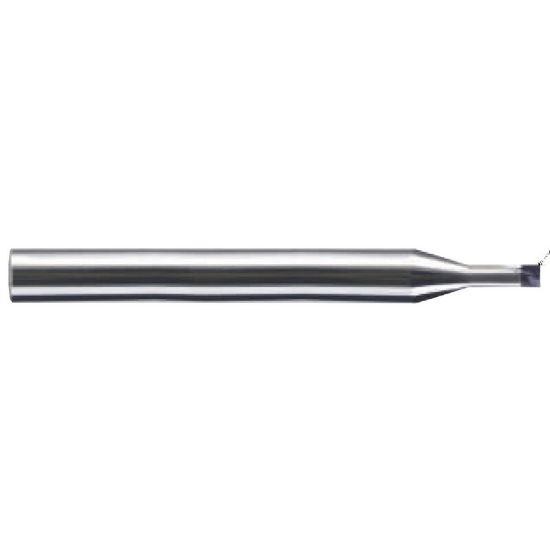

Picture of YG-1 ESD02005053 DIA 0.50MM SH 0.1575 LOC 0.0118 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

YG-1 ESD02005053 DIA 0.50MM SH 0.1575 LOC 0.0118 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ESD02005053
Delivery date: 3-5 days
$229.24

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Side Milling, Copy Milling, Slot Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0020 0.05MM
Cutter Dia 0.0197 0.50MM
Single/Double End Single End
Machine Side Connection Size 0.1575 4.00MM
Length Type Standard / With Neck
Cut Rating >50HRC Steel
Neck Length 0.1181 3.00MM
Cutter Style CBN Bull Nose
Helix Angle 30°
Flutes/Inserts 2
Inch/Metric Metric
Tool Material CBN
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Shank/Pilot Dia 0.1574 4.00MM
Length Of Cut 0.0118 0.30MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat CBN
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
