  • YG-1 ESD02005052 DIA 0.50MM SH 0.1575 LOC 0.0118 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

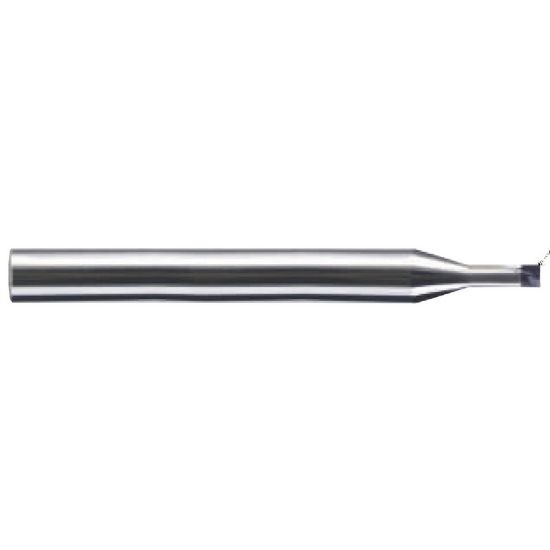

Picture of YG-1 ESD02005052 DIA 0.50MM SH 0.1575 LOC 0.0118 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

YG-1 ESD02005052 DIA 0.50MM SH 0.1575 LOC 0.0118 OAL 1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius 0.0020 0.05MM CBN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ESD02005052
Delivery date: 3-5 days
$229.24

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating High Performance
Application Face Milling, Copy Milling, Profile Milling, Slot Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.1575 4.00MM
Length Type Standard / With Neck
Corner Radius 0.0020 0.05MM
Cutter Dia 0.0197 0.50MM
Inch/Metric Metric
Single/Double End Single End
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Shank/Pilot Dia 0.1574 4.00MM
Length Of Cut 0.0118 0.30MM
End Of Tool Shape Corner Radius
Flutes/Inserts 2
Cut Rating >50HRC Steel
Cutter Style CBN Bull Nose
Helix Angle 30°
Neck Length 0.0787 2.00MM
Tool Material CBN
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat CBN
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
