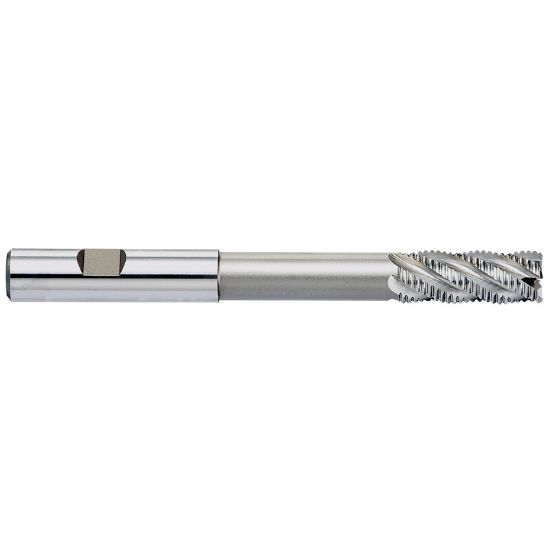

YG-1 EP21162 DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 8.50 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP21162
Delivery date: 3-5 days
$293.65

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 8.5000 215.90MM
Cutter Style Powder Metal Rougher
Helix Angle 35°
Single/Double End Single End
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Square
Cut Rating High Temp, Titanium
Length Type Long
Tool Material Powder Metal
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Medical Yes
