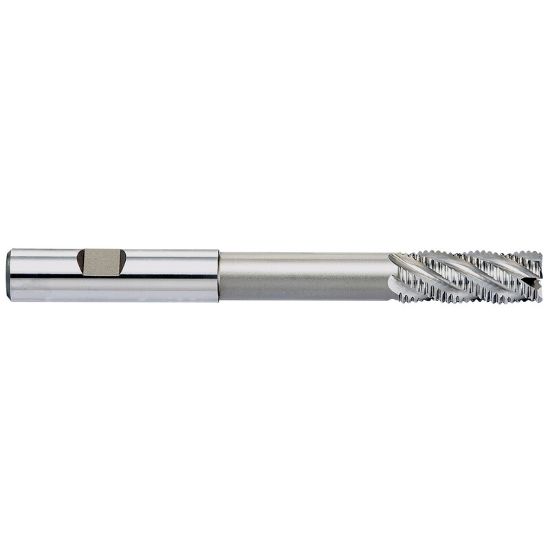

YG-1 EP21161 DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 6.50 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP21161
Delivery date: 3-5 days
$249.87

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Dimensional Specifications
Tool Material Powder Metal
Cut Rating High Temp, Titanium
Cutter Dia 1.2500 31.75MM - 1-1/4
Inch/Metric Inch
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
Helix Angle 35°
Single/Double End Single End
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Cutter Style Powder Metal Rougher
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Agricultural YES
Medical Yes
Energy Yes
