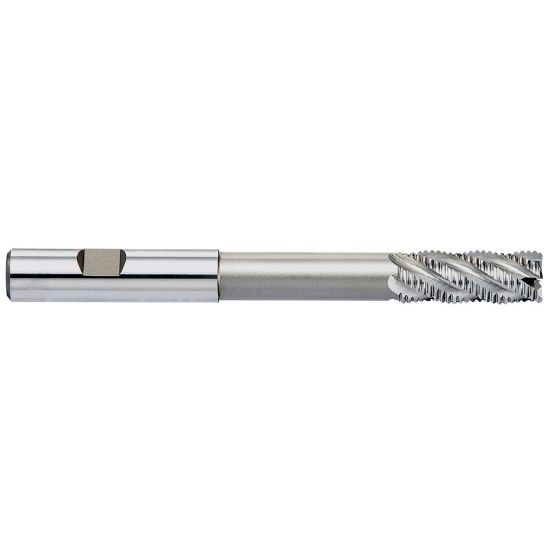

YG-1 EP20643 DIA 1 SH 1.00 LOC 2.00 OAL 8.50 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP20643
Delivery date: 3-5 days
$157.83

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
Cut Rating High Temp, Titanium
Length Type Long
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Cutter Dia 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
End Of Tool Shape Square
Overall Len 8.5000 215.90MM
Cutter Style Powder Metal Rougher
Tool Material Powder Metal
Helix Angle 35°
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Aerospace Yes
Agricultural YES
Energy Yes
