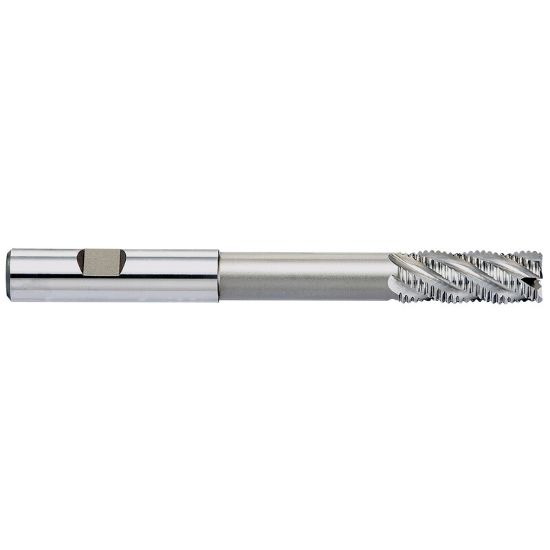

YG-1 EP20642 DIA 1 SH 1.00 LOC 2.00 OAL 6.50 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP20642
Delivery date: 3-5 days
$131.89

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Side Milling, Face Milling
Performance Rating High Performance
Dimensional Specifications
Overall Len 6.5000 165.10MM
End Of Tool Shape Square
Cut Rating High Temp, Titanium
Cutter Dia 1.0000 25.40MM
Length Type Standard
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Tool Material Powder Metal
Helix Angle 35°
Cutter Style Powder Metal Rougher
Single/Double End Single End
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Agricultural YES
Medical Yes
Energy Yes
