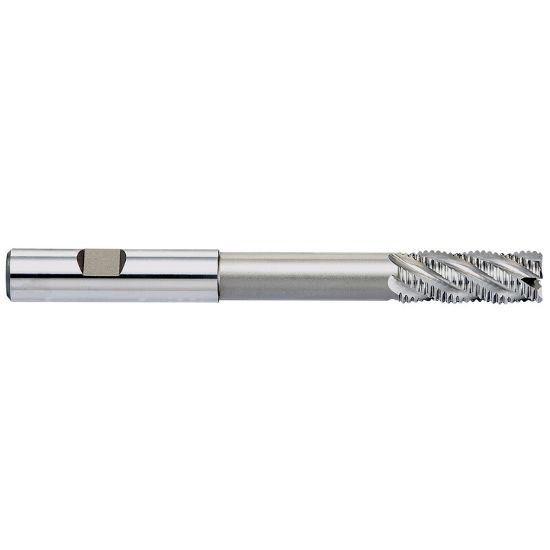

YG-1 EP20402 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 6.1250 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP20402
Delivery date: 3-5 days
$76.19

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Face Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating High Temp, Titanium
Length Of Cut 1.6250 41.28MM
Length Type Standard
Tool Material Powder Metal
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 6.1250 155.58MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Cutter Style Powder Metal Rougher
Machine Side Connection Size 0.6250 15.88MM
Helix Angle 35°
Single/Double End Single End
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Agricultural YES
Energy Yes
