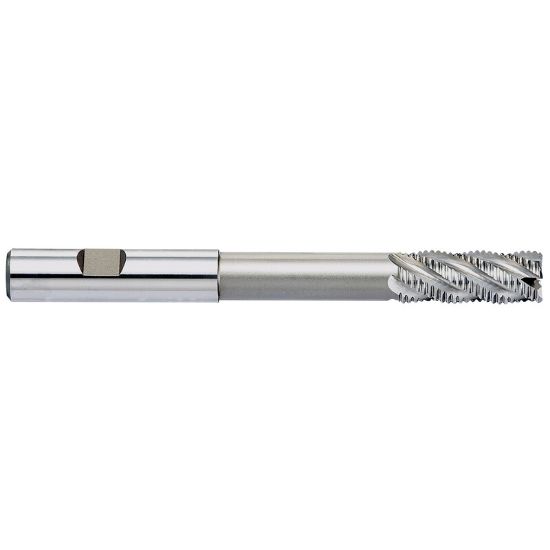

YG-1 EP20322 DIA 1/2 SH 0.50 LOC 1.2500 OAL 5.00 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP20322
Delivery date: 3-5 days
$57.05

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Tool Material Powder Metal
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.2500 31.75MM
Single/Double End Single End
End Of Tool Shape Square
Inch/Metric Inch
Cutter Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Helix Angle 35°
Cut Rating High Temp, Titanium
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutter Style Powder Metal Rougher
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
