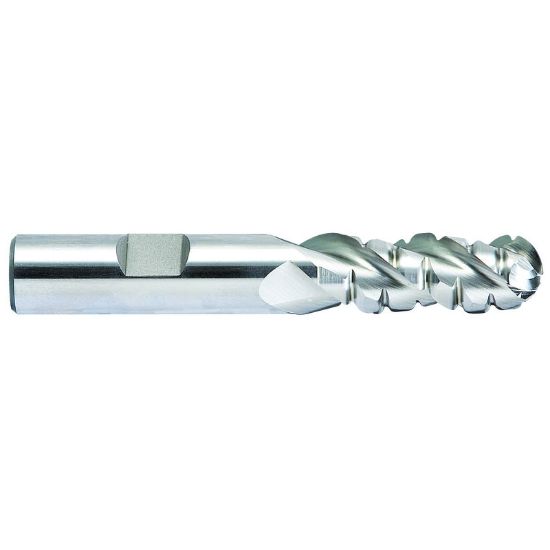

YG-1 EP12048 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Roughing Flute Standard Helix Powder Metal Uncoated Single End Ball Nose ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP12048
Delivery date: 3-5 days
$103.37

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Side Milling, Profile Milling, Ball Slot Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Length Of Cut 1.6250 41.28MM
Machine Side Connection Type Weldon
Helix Angle 42°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Overall Len 3.8750 98.43MM
Length Type Standard
Cutter Style Powder Metal Ball Rougher
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
