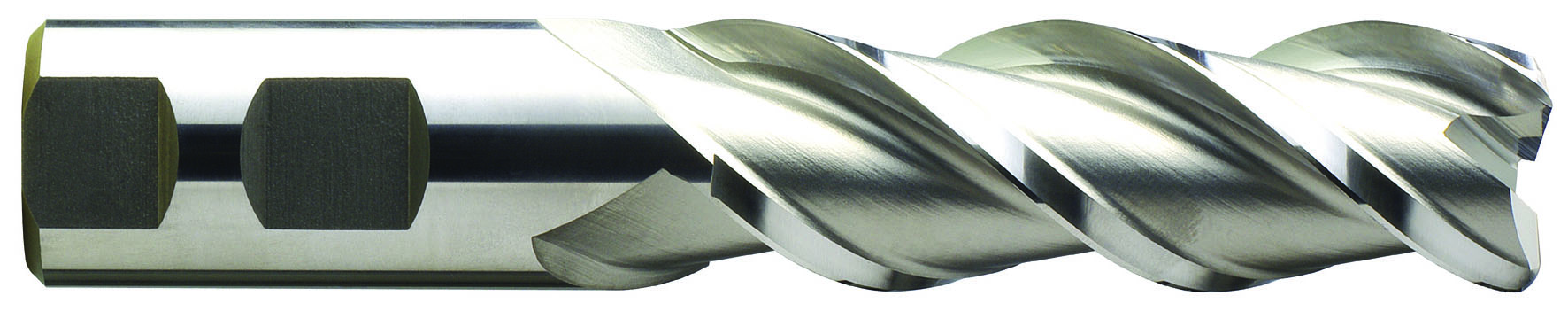

Picture of YG-1 EP11323C Dia 1-1/2 SH 1.2500 LOC 4.00 OAL6.50 End Mill Standard Flute Standard Helix Powder Metal TiCN Single End Corner Radius0.1200 3.05mm ASP

YG-1 EP11323C Dia 1-1/2 SH 1.2500 LOC 4.00 OAL6.50 End Mill Standard Flute Standard Helix Powder Metal TiCN Single End Corner Radius0.1200 3.05mm ASP

Part Number: YG-EP11323C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1209669
Vendor: Sussex Tool and Supply
$383.01
YG-1 Standard Helix End Mill Powder Metal TiCN Corner Radius 0.1200 3.05MM Standard Flute Flutes 3 Single End ASP Powder Metal Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Machine Side Connection Type Weldon
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 1.2500 31.75MM
Overall Length 6.5000 165.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool End Mill
Length Type LONG
Performance Rating High Performance
Length Of Cut 4.0000 101.60MM
End Of Tool Shape CORNER RADIUS
Cutter Style Powder Metal Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.1200 3.05MM
Inch/Metric Inch
Helix Angle 42
Center Cutting Center Cutting
