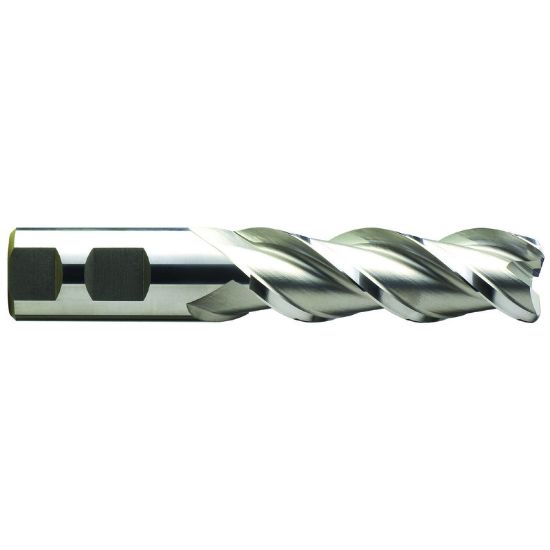

YG-1 EP11323 DIA 1-1/2 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP11323
Delivery date: 3-5 days
$338.59

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling, Slot Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Length Of Cut 4.0000 101.60MM
Helix Angle 42°
End Of Tool Shape Corner Radius
Single/Double End Single End
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
Flutes/Inserts 3
Length Type Long
Tool Material Powder Metal
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.5000 38.10MM - 1-1/2
Inch/Metric Inch
Corner Radius 0.1200 3.05MM
Machine Side Connection Size 1.2500 31.75MM
Cutter Style Powder Metal Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
