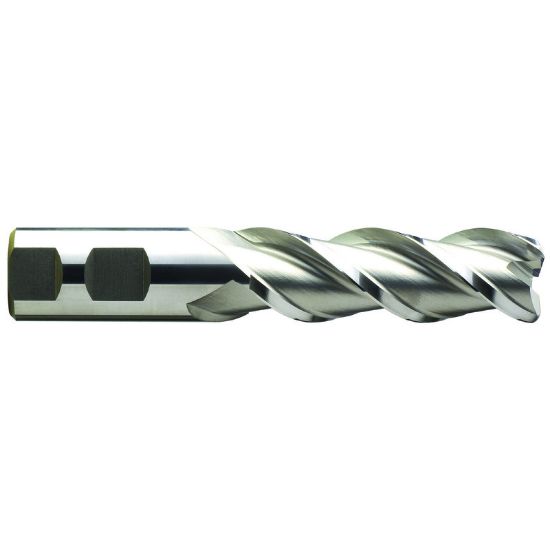

YG-1 EP11322 DIA 1-1/2 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP11322
Delivery date: 3-5 days
$270.33

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Corner Radius 0.1200 3.05MM
Machine Side Connection Size 1.2500 31.75MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Length Of Cut 3.0000 76.20MM
Length Type Standard
End Of Tool Shape Corner Radius
Cutter Style Powder Metal Bull Nose Finisher
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Helix Angle 42°
Inch/Metric Inch
Tool Material Powder Metal
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.5000 139.70MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
