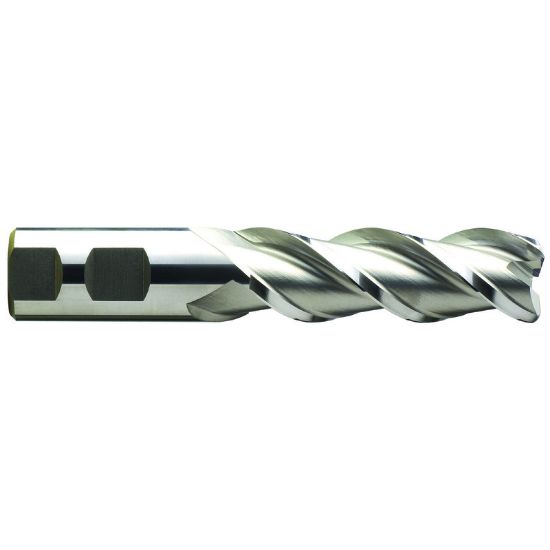

YG-1 EP10641 DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP10641
Delivery date: 3-5 days
$102.24

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Corner Radius 0.1200 3.05MM
End Of Tool Shape Corner Radius
Cutter Style Powder Metal Bull Nose Finisher
Single/Double End Single End
Cutter Dia 1.0000 25.40MM
Length Type Standard
Tool Material Powder Metal
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Helix Angle 42°
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
