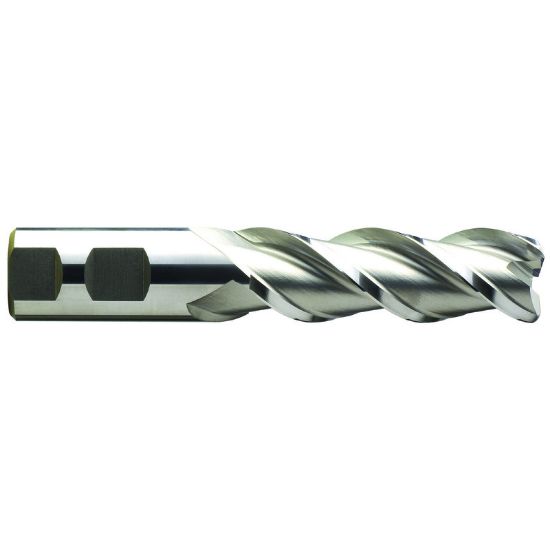

YG-1 EP10482 DIA 3/4 SH 0.7500 LOC 2.2500 OAL 4.6250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP10482
Delivery date: 3-5 days
$124.44

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Side Milling, Slot Milling
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Corner Radius 0.1200 3.05MM
Length Type Standard
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.6250 117.48MM
Single/Double End Single End
Machine Side Connection Type Weldon
Length Of Cut 2.2500 57.15MM
Helix Angle 42°
End Of Tool Shape Corner Radius
Cutter Style Powder Metal Bull Nose Finisher
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
