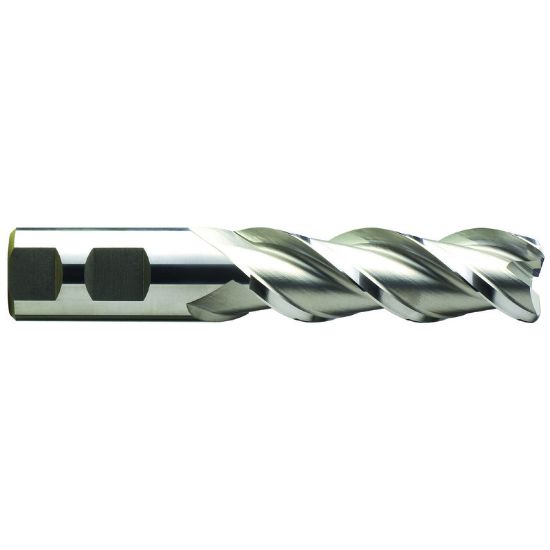

YG-1 EP10403 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP10403
Delivery date: 3-5 days
$47.89

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Cutter Dia 0.6250 15.88MM - 5/8
Tool Material Powder Metal
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Helix Angle 42°
Inch/Metric Inch
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
