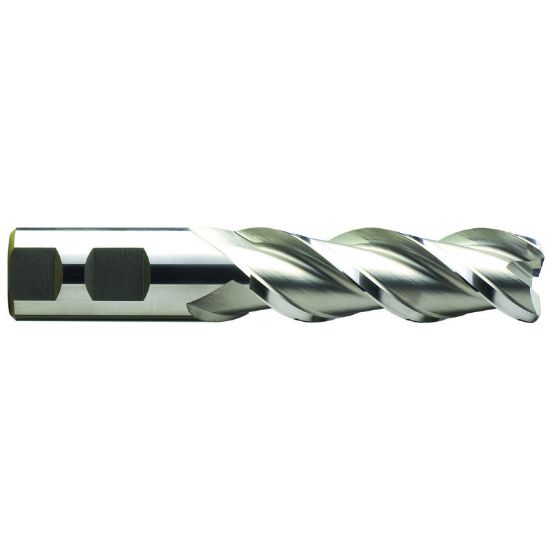

YG-1 EP10402 DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP10402
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Slot Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Tool Material Powder Metal
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Cutter Style Powder Metal Bull Nose Finisher
Flutes/Inserts 3
Length Of Cut 2.5000 63.50MM
Corner Radius 0.1200 3.05MM
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.6250 117.48MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Length Type Long
Machine Side Connection Type Weldon
Helix Angle 42°
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
