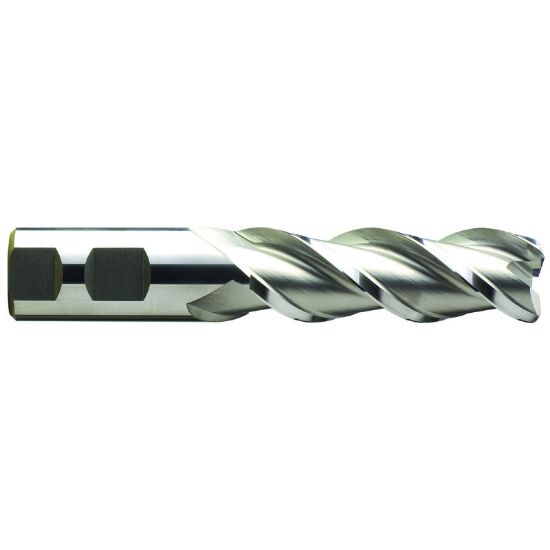

YG-1 EP10401 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP10401
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Profile Milling, Slot Milling, Side Milling, Face Milling, Copy Milling
Performance Rating High Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Length Type Standard
Tool Material Powder Metal
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
End Of Tool Shape Corner Radius
Cutter Style Powder Metal Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Helix Angle 42°
Inch/Metric Inch
Corner Radius 0.1200 3.05MM
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
