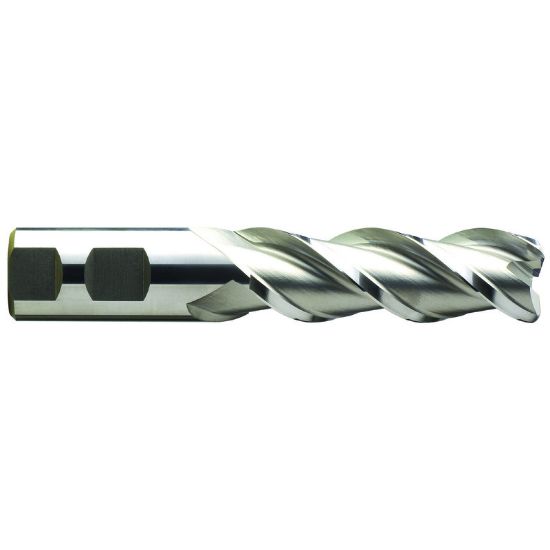

YG-1 EP10321 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EP10321
Delivery date: 3-5 days
$28.73

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Made In USA No
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Tool Material Powder Metal
Flutes/Inserts 3
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Weldon
Inch/Metric Inch
Length Type Standard
Helix Angle 42°
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Corner Radius 0.1200 3.05MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 3.2500 82.55MM
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Cutter Style Powder Metal Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
