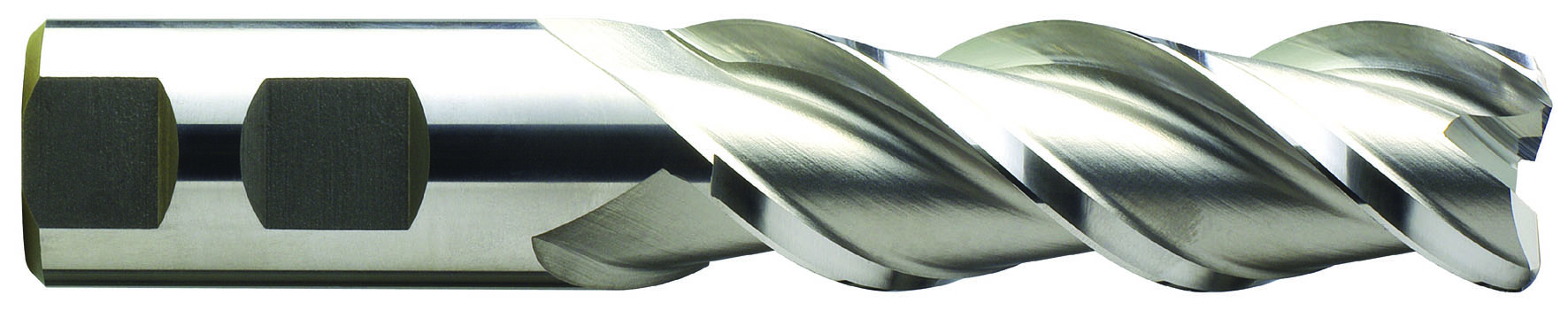

Picture of YG-1 EK13211C Dia 3/4 SH 0.7500 LOC 1.50 OAL6.2500 End Mill Standard Flute Standard Helix Powder Metal TiCN Single End Square Sharp ASP

YG-1 EK13211C Dia 3/4 SH 0.7500 LOC 1.50 OAL6.2500 End Mill Standard Flute Standard Helix Powder Metal TiCN Single End Square Sharp ASP

Part Number: YG-EK13211C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1206629
Vendor: Sussex Tool and Supply
$100.13
YG-1 Standard Helix End Mill Powder Metal TiCN Square Sharp Standard Flute Flutes 3 Single End ASP Powder Metal Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.7500 19.05MM
Overall Length 6.2500 158.75MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 42
Center Cutting Center Cutting
Neck Length 4.0000 101.60MM
