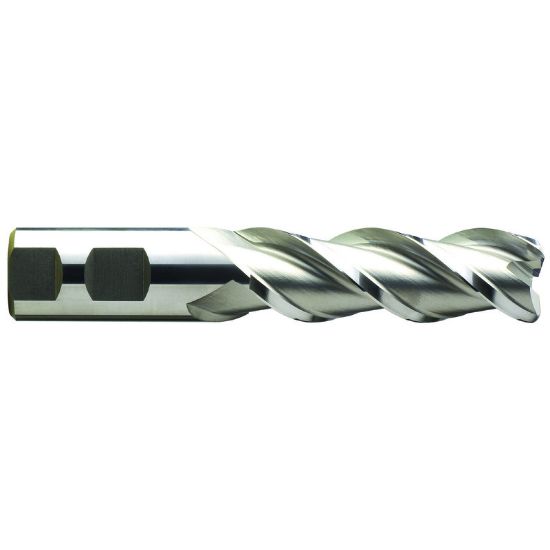

YG-1 EK13210 DIA 3/4 SH 0.7500 LOC 1.50 OAL 5.2500 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EK13210
Delivery date: 3-5 days
$72.40

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Helix Angle 42°
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Neck Length 3.0000 76.20MM
Overall Len 5.2500 133.35MM
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
