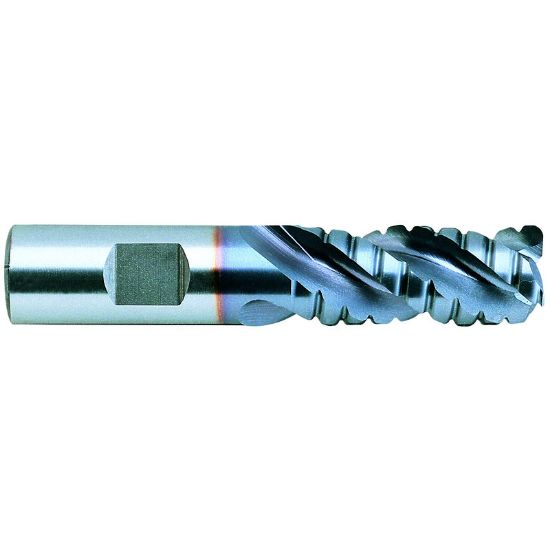

YG-1 EK10644 DIA 1 SH 1.00 LOC 2.00 OAL 8.50 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EK10644
Delivery date: 3-5 days
$198.03

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Side Milling, Face Milling
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Overall Len 8.5000 215.90MM
Cutter Style Powder Metal Rougher
Cutter Dia 1.0000 25.40MM
Length Type Standard / With Neck
Neck Length 6.0000 152.40MM
Tool Material Powder Metal
Flutes/Inserts 3
Machine Side Connection Type Cylindrical
Length Of Cut 2.0000 50.80MM
Helix Angle 42°
Inch/Metric Inch
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
End Of Tool Shape Square
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Energy Yes
