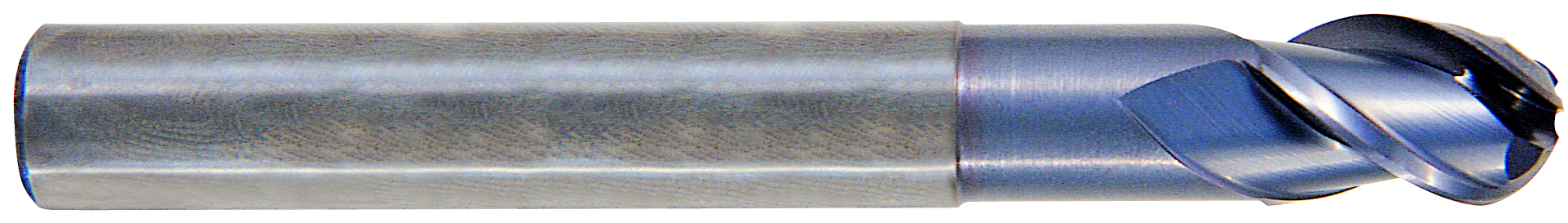

Picture of YG-1 EG908080 Dia 8mm SH 0.3150 LOC 0.4724 OAL2.9528 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall Alu-Power End Mill

YG-1 EG908080 Dia 8mm SH 0.3150 LOC 0.4724 OAL2.9528 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall Alu-Power End Mill

Part Number: YG-EG908080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1206462
Vendor: Sussex Tool and Supply
$51.58
YG-1 Standard Helix End Mill Carbide TiCN Ball Nose Ball Standard Flute Flutes 3 Single End Alu-Power End Mill Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 3
Tool Dia 0.3150 8.00MM
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.4724 12.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 40
Center Cutting Center Cutting
Neck Length 0.9843 25.00MM
