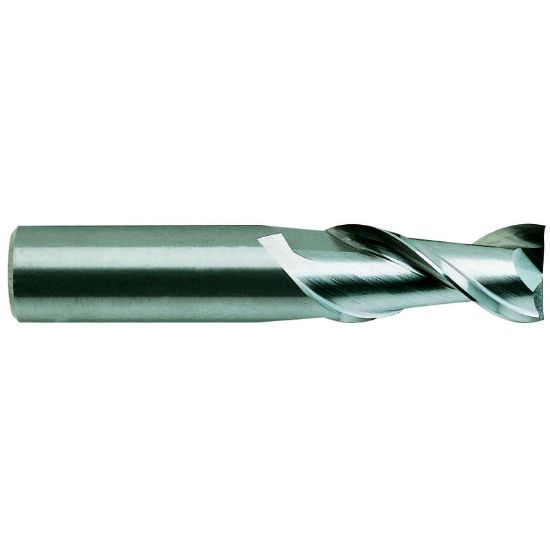

YG-1 EG522200 DIA 20MM SH 0.7874 LOC 1.4961 OAL 4.0945 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EG522200
Delivery date: 3-5 days
$198.09

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Performance Rating High Performance
Made In USA No
Application Face Milling, Side Milling
Dimensional Specifications
Helix Angle 45°
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Length Type Long
Inch/Metric Metric
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.0945 104.00MM
Single/Double End Single End
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
