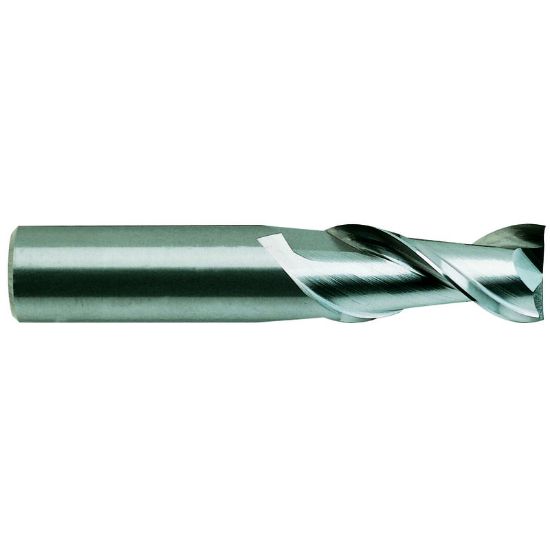

YG-1 EG522140 DIA 14MM SH 0.5512 LOC 1.0236 OAL 3.2677 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EG522140
Delivery date: 3-5 days
$104.73

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Face Milling
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Length Type Long
Length Of Cut 1.0236 26.00MM
Cutter Dia 0.5512 14.00MM
Shank/Pilot Dia 0.5512 14.00MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.5512 14.00MM
Overall Len 3.2677 83.00MM
End Of Tool Shape Square
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
