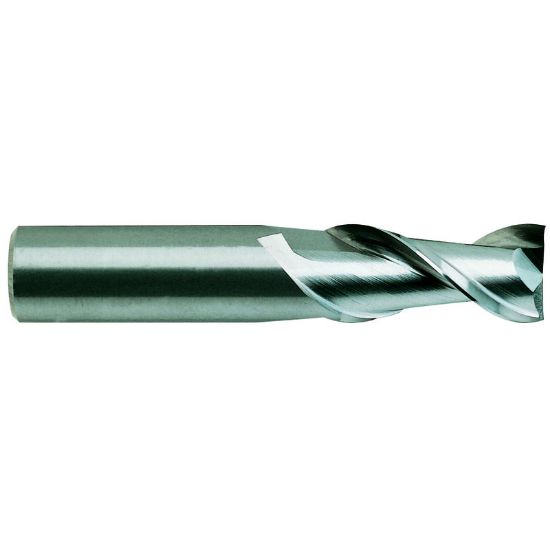

YG-1 EG522050 DIA 5MM SH 0.2362 LOC 0.5118 OAL 2.2441 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EG522050
Delivery date: 3-5 days
$24.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Illinois
Application Side Milling, Face Milling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1968 5.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Helix Angle 45°
Single/Double End Single End
Flutes/Inserts 2
Length Of Cut 0.5118 13.00MM
Length Type Long
Inch/Metric Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
