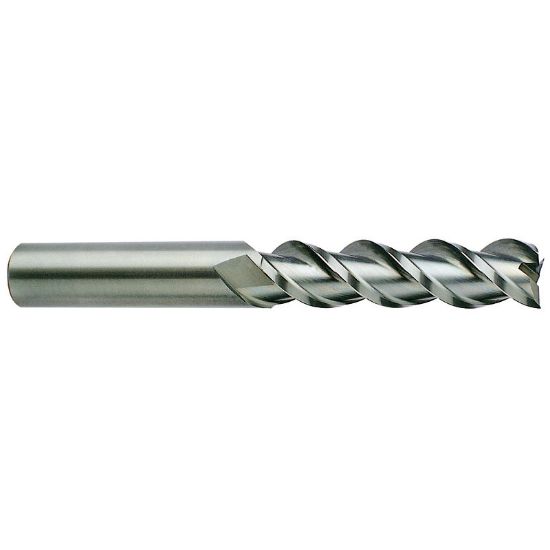

YG-1 EA60401 DIA 5/8 SH 0.6250 LOC 2.50 OAL 5.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-EA60401
Delivery date: 3-5 days
$128.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Profile Milling, Slot Milling, Face Milling, Side Milling, Copy Milling
Package Size 1
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Length Type Long
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 5.0000 127.00MM
Length Of Cut 2.5000 63.50MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0600 1.52MM
Helix Angle 45°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
