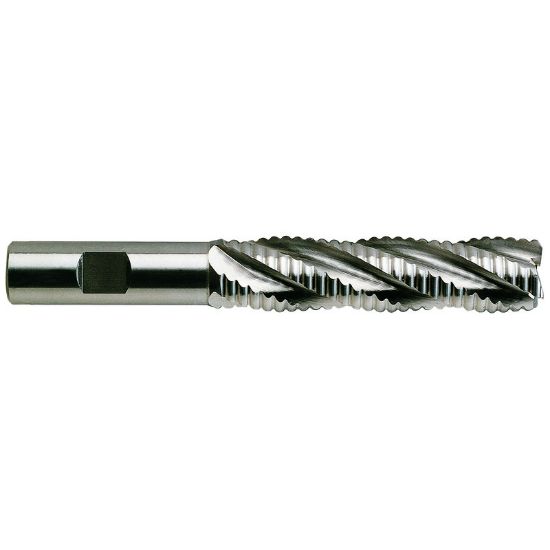

YG-1 E9A87116 DIA 1-1/4 SH 0.7500 LOC 4.00 OAL 6.2500 End Mill Powder Metal Uncoated Single End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9A87116
Delivery date: 3-5 days
$150.81

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Illinois
Application Side Milling, Face Milling
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Square
Overall Len 6.2500 158.75MM
Length Of Cut 4.0000 101.60MM
Cutter Style Powder Metal Rougher
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Length Type Long
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Machine Side Connection Type Weldon
Flutes/Inserts 6
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Energy Yes
Agricultural YES
