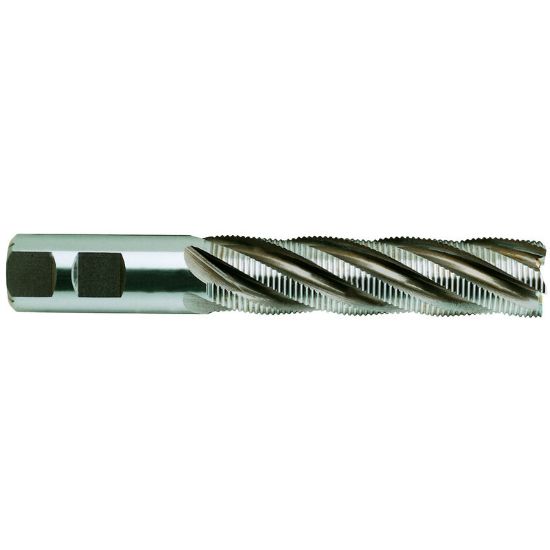

YG-1 E9A86020 DIA 5/16 SH 0.3750 LOC 1.3750 OAL 3.1875 End Mill Powder Metal Uncoated Single End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9A86020
Delivery date: 3-5 days
$38.19

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.3125 7.94MM - 5/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.1875 80.96MM
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 1.3750 34.93MM
Machine Side Connection Type Weldon
Helix Angle 30°
Tool Material Powder Metal
Length Type Long
Cutter Style Powder Metal Fine Rougher
Single/Double End Single End
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
