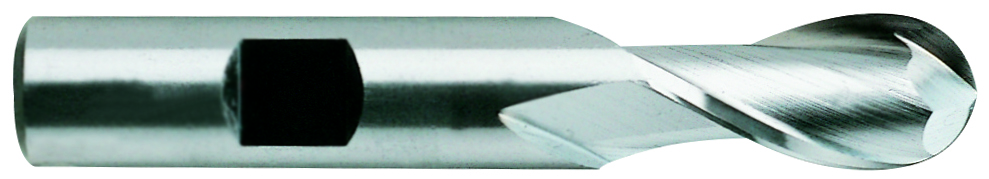

Picture of YG-1 E9992056 Dia 7/8 SH 0.8750 LOC 2.00 OAL4.2500 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Ball NoseBall Tank-Power End Mill

YG-1 E9992056 Dia 7/8 SH 0.8750 LOC 2.00 OAL4.2500 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Ball NoseBall Tank-Power End Mill

Part Number: YG-E9992056
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$109.50
SKU: 1211389

Description

YG-1 Standard Helix End Mill Powder Metal Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End Tank-Power End Mill Powder Metal
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Powder Metal Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Flutes/Inserts 2
Tool Dia 0.8750 22.23MM - 7/8
Length Of Cut 2.0000 50.80MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
