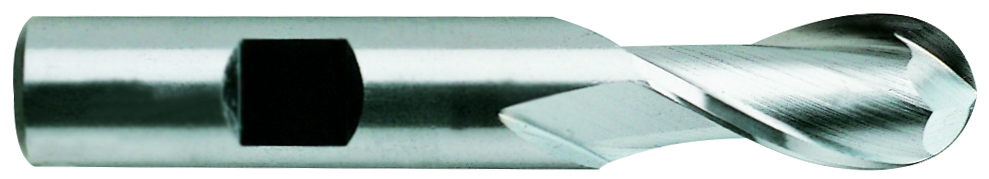

Picture of YG-1 E9992020 Dia 5/16 SH 0.3750 LOC 0.7500 OAL2.50 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Ball NoseBall Tank-Power End Mill

YG-1 E9992020 Dia 5/16 SH 0.3750 LOC 0.7500 OAL2.50 End Mill Standard Flute Standard Helix Powder Metal Uncoated Single End Ball NoseBall Tank-Power End Mill

Part Number: YG-E9992020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1211379
Vendor: Sussex Tool and Supply
$17.72
YG-1 Standard Helix End Mill Powder Metal Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End Tank-Power End Mill Powder Metal
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron, Gray Iron, High Temp
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Ball Nose
Cutter Style Powder Metal Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
