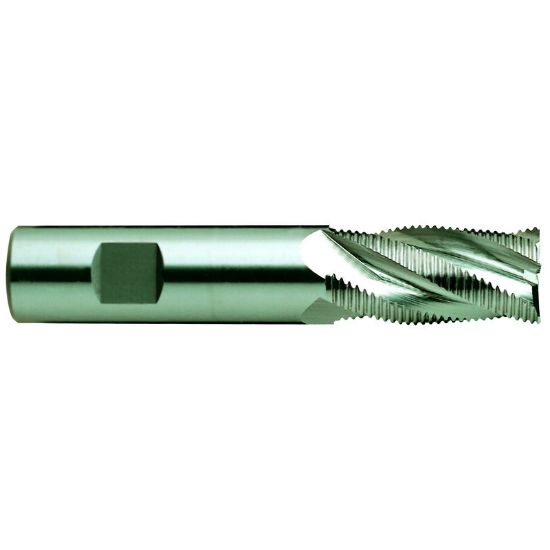

YG-1 E9990909 DIA 3/4 SH 0.7500 LOC 2.50 OAL 4.7500 End Mill Powder Metal Uncoated Single End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9990909
Delivery date: 3-5 days
$64.73

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Flutes/Inserts 4
Length Type Standard
Overall Len 4.7500 120.65MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutter Style Powder Metal Rougher
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
