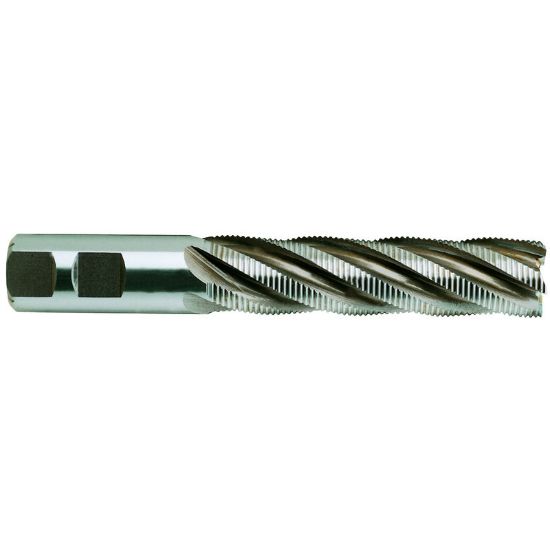

YG-1 E9990904 DIA 1-1/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Powder Metal Uncoated Single End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9990904
Delivery date: 3-5 days
$154.64

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Length Type Long
Tool Material Powder Metal
Cutter Style Powder Metal Rougher
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Length Of Cut 4.0000 101.60MM
Helix Angle 30°
Single/Double End Single End
Cutter Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 6
Inch/Metric Inch
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
