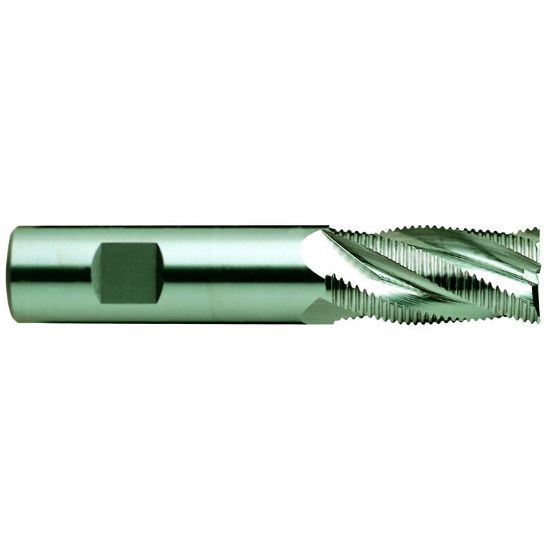

YG-1 E9990048 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Powder Metal Uncoated Single End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9990048
Delivery date: 3-5 days
$53.43

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Inch/Metric Inch
Cutter Style Powder Metal Rougher
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Single/Double End Single End
Overall Len 3.8750 98.43MM
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Square
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Length Of Cut 1.6250 41.28MM
Machine Side Connection Type Weldon
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
