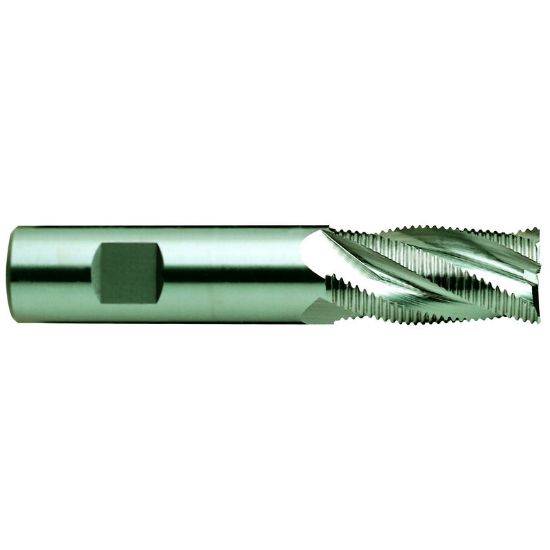

YG-1 E9990020 DIA 5/16 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Powder Metal Uncoated Single End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9990020
Delivery date: 3-5 days
$24.25

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Overall Len 2.5000 63.50MM
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Inch/Metric Inch
Cutter Style Powder Metal Rougher
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.3125 7.94MM - 5/16
Tool Material Powder Metal
Flutes/Inserts 3
Length Of Cut 0.7500 19.05MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Powder Metal
Coolant Thru No
Industry-Specific Applications
Energy Yes
Job Shop Yes
Agricultural YES
