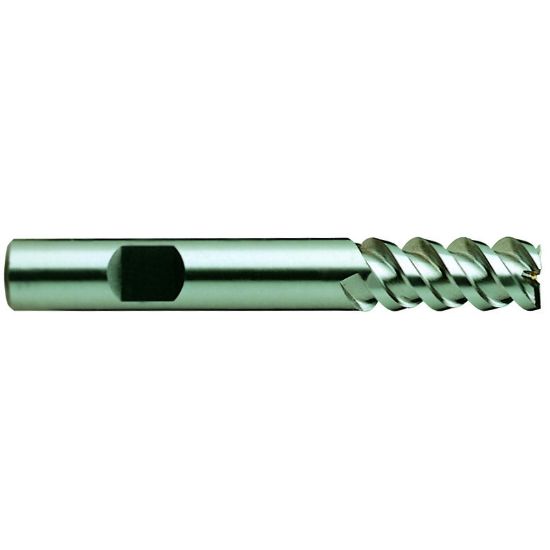

YG-1 E9988040 DIA 5/8 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9988040
Delivery date: 3-5 days
$44.67

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating High Performance
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Helix Angle 60°
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Inch/Metric Inch
Machine Side Connection Size 0.6250 15.88MM
Length Type Standard
Cutter Dia 0.6250 15.88MM - 5/8
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Powder Metal
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
