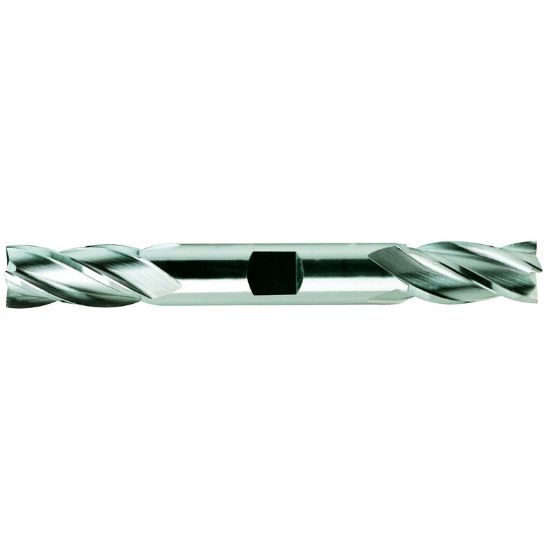

YG-1 E9986048 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 5.6250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9986048
Delivery date: 3-5 days
$58.64

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Helix Angle 30°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 5.6250 142.88MM
Length Of Cut 1.6250 41.28MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Flutes/Inserts 4
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
