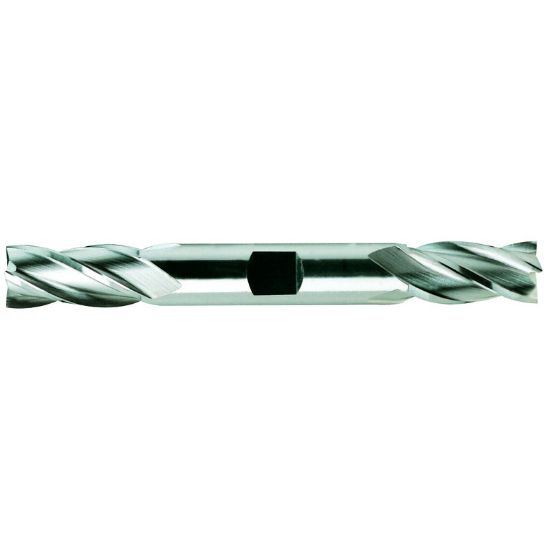

YG-1 E9986020 DIA 5/16 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9986020
Delivery date: 3-5 days
$19.53

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Length Of Cut 0.7500 19.05MM
Machine Side Connection Size 0.3750 9.53MM
Helix Angle 30°
Tool Material Powder Metal
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.3125 7.94MM - 5/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Powder Metal
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
