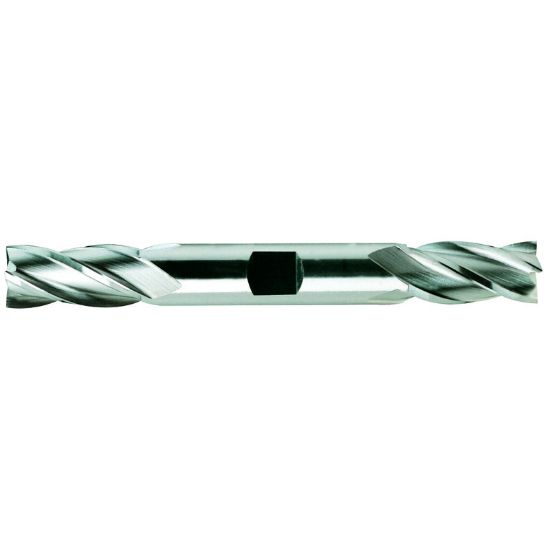

YG-1 E9986016 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 3.3750 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9986016
Delivery date: 3-5 days
$19.53

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Inch/Metric Inch
Tool Material Powder Metal
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Powder Metal Finisher
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Machine Side Connection Type Weldon
Overall Len 3.3750 85.73MM
Helix Angle 30°
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
