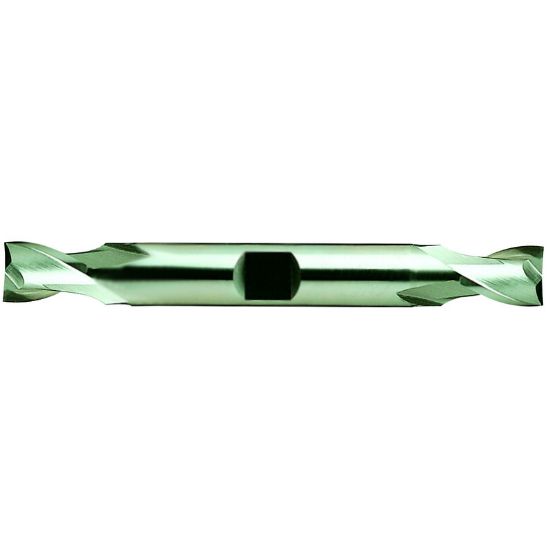

YG-1 E9984064 DIA 1 SH 1.00 LOC 1.6250 OAL 5.8750 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9984064
Delivery date: 3-5 days
$87.67

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Application Side Milling, Face Milling
Dimensional Specifications
Flutes/Inserts 2
Length Of Cut 1.6250 41.28MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Cutter Dia 1.0000 25.40MM
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 5.8750 149.23MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Tool Material Powder Metal
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
