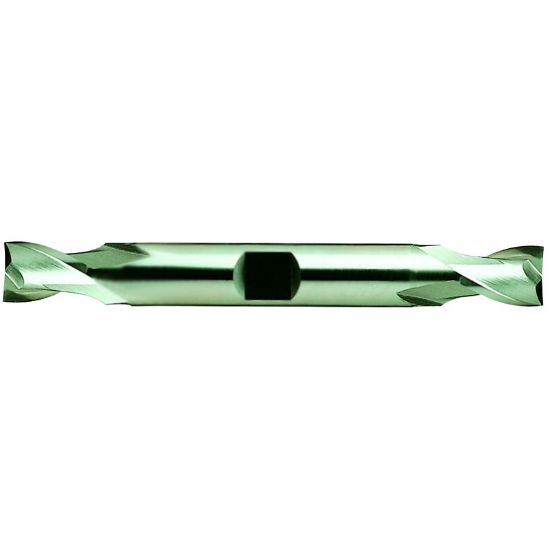

YG-1 E9984012 DIA 3/16 SH 0.3750 LOC 0.4375 OAL 3.1250 End Mill Standard Flute Standard Helix Powder Metal Uncoated Double End Square Sharp Tank-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E9984012
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Powder Metal
Cutter Dia 0.1875 4.76MM - 3/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.4375 11.11MM
Inch/Metric Inch
Flutes/Inserts 2
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Overall Len 3.1250 79.38MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
