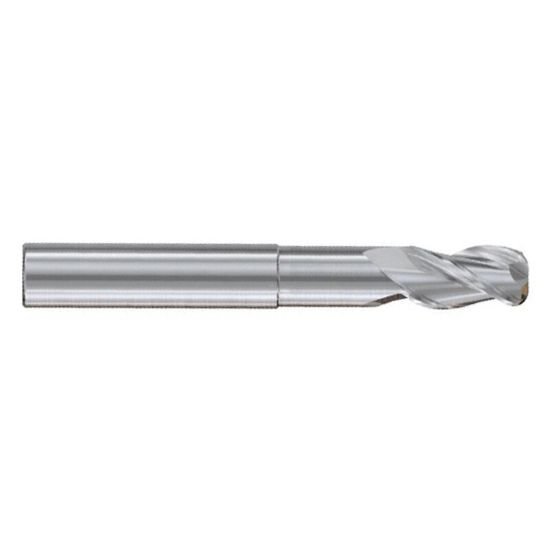

Picture of YG-1 E5G98986 Dia 1 SH 1.00 LOC 1.2500 OAL7.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1200 3.05mm Alu-Power HPC

YG-1 E5G98986 Dia 1 SH 1.00 LOC 1.2500 OAL7.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1200 3.05mm Alu-Power HPC

Part Number: YG-E5G98986

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1206209
Vendor: Sussex Tool and Supply
$432.05
YG-1 Standard Helix End Mill Carbide Uncoated Corner Radius 0.1200 3.05MM Standard Flute Flutes 3 Single End Alu-Power HPC Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 1.0000 25.40MM
Overall Length 7.0000 177.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.1200 3.05MM
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
Neck Length 4.3750 111.13MM
